Brand Name : Hosem Power
Model Number : A-KF55
Certification : CE/ISO9001
Place of Origin : CHINA
MOQ : 1 SET
Price : Negotiable
Payment Terms : L/C, T/T
Supply Ability : 500 unit per month
Delivery Time : 30 days
Packaging Details : ply-wood or plastic film
Product Name : Diesel Generator Set
Frequency : 50Hz
Voltage : 230V/400V
Standby Output : 55kVA
Prime Output : 50kVA
Engine Brand : Ricardo
Engine Model : N4105ZDS
Alternator Brand : Hosem
Alternator Type : Stamford
Controller : Deepsea/ ComAp/ Smartgen
General Features of 50kVA Ricardo Generator:
Engine-Industrial 4 strokes cooled diesel engine complete with air, fuel and oil filters, electric starting and charging equipment, engine protection against oil low water level.
Alternator-brushless, self-exciting, self-regulation, screen protected, drip-proof rated in accordance with IEC60034. Voltage regulation maintained within ±0.5% from no load to full load, between 0.8 lagging and unity. All standard voltages are available.
Cooling-Radiator and cooling fan complete with protection guards, designed to cool the engine at the specified output in air temperature up to 45℃,radiator suitable for higher temperature are available. Low water level protection fitted as standard.
Exhaust system-Heavy duty industrial exhaust silencer with flexible piping.
Specification of Ricardo Generator Set
Model | A-KF55 | |
Standby Power | kVA | 55 |
kW | 44 | |
Prime Power | kVA | 50 |
kW | 40 | |
Frequency | Hz | 50 |
Output Voltage | V | 400/230 |
Oil Consumption | L/H | 0.037 |
Dimension For Open-type | mm | 1520 X 800 X 1350 |
Weight For Open-type | kg | 715 |
Dimension For Soundproof | mm | 2100 X 900 X 1250 |
Weight For Soundprof | kg | 975 |
Noise For Soundproof | dBA | 75 |
Engine Manufacturer | Shandong Kofo Power Co. Ltd. | |
Engine Brand | Kofo | |
Engine Model | N4105ZDS | |
No.of Cylinder | 4 Cylinder in line | |
Bore | mm | 105 |
Stroke | mm | 120 |
Displacement | L | 3.76 |
Aspiration | Turbocharger | |
Rate Speed | R.P.M. | 1500 |
Governor | Mechanical | |
Lubrication Oil Capacity | L | 13 |
Starting Voltage | V | 12 |
Engine Max.Output Power | kW | 56 |
Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. | |
Alternator Brand | Hosem Power | |
Alternator Model | ASF224D | |
Rate Output | kVA | 50 |
Frequency | Hz | 50 |
Altitude | M | ≤1000 |
Insulation | Class H | |
Protection Grade | IP23 | |
Alternator for choice | We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice. |
Control Panel of Ricardo Diesel Generator
Smartgen Control System
Automatic Start Control Panel
Smartgen control system integrating digital, intelligent, and network techniques is used for automatic control of diesel generator set. It can carry out functions including automatic start/stop, data measure, and alarming.
The controller uses an LCD display, optional Chinese and English display interface with operation easy and reliable.
HT2000 control system uses a micro-processing technique that can carry out precision measures, constant value adjustment timing and threshold setting and etc. of multi-parameters. It can be widely used in all types of generator
automatic control for compact structure, advanced circuits, simple connections, and high reliability.
•High Temperature, low oil pressure, over speed, overcurrent, over/under voltage, over/under frequency protection.
•3 phase generator voltage and current measurement
•3 phase busbar voltage measurement
•3 phase power measurement
•3 analog inputs
•Event and performance log
•2 languages (user changeable)

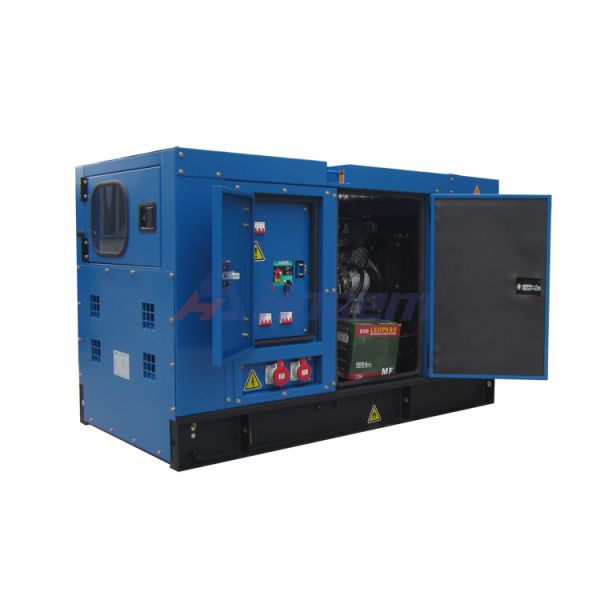

N4105ZDS Engine 50kVA Ricardo Diesel Generator Images |
